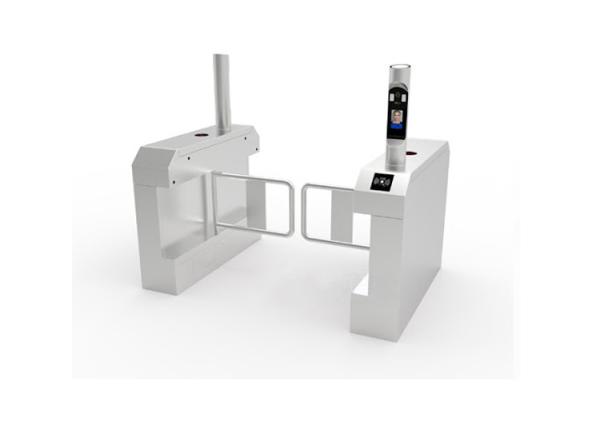

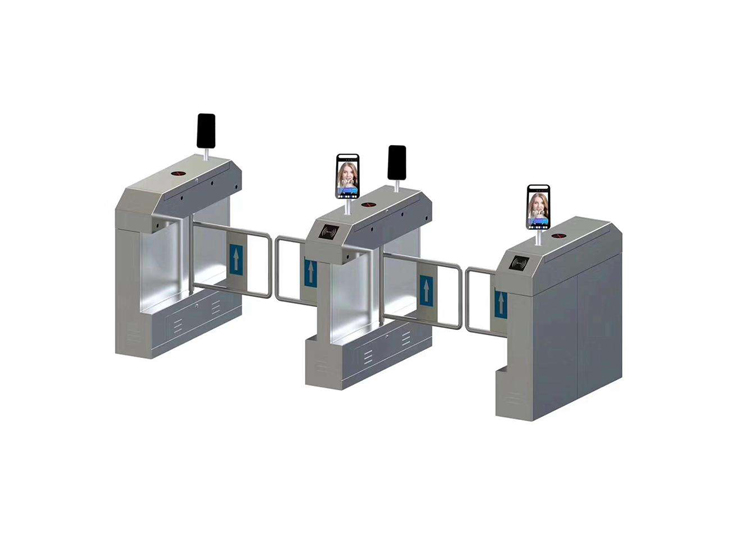

Face scan human body temperature detection integrated Swing Gate biometric access control system
Product Application
Swing turnstile barrier Series are widely suitable for indoor & outdoor application.
It is optimized affordable solution for Airport, Lobby, commercial office building, factory, bus station, game park, colleges and banks.
Our Turnstile can combine with different kinds of access readers,like: RFID Reader & Fingerprint Reader & Coin Machine & QR code/Bar code System & ESD Tester Access Control(If you have access control system,you can only purchase our barrier and turnstile.
Specifications
| SPECIFICATIONS FOR MACHINE |
| 1 | Cabinet dimension | 1200 (L) x 280 (W) x 1000 (H) mm |
| 2 | Cabinet material | 304 stainless steel (SS316 optional) |
| 3 | Lane length | normally 600mm, can lengthen |
| 4 | Flap opening/closing time | 0.2s |
| 5 | Access mode | single in/out or Bidirectional |
| 6 | Access Readers | rfid cards , fingerprint, Barcode ,ticket scanners |
| 7 | More Optional function | coin controller, counter , sound alarm, speakers |
Features of Pedestrian Swing Gate:
1. Safety function(anti-pinching). By default flap wing will auto- reverse if IR sensor detected obstacle within the flap wing area. This avoid flap wing to accidentally hit onto to user. Can adding green/red/blue light lining effect along the edge of the flap wing to ensure flap wing is easily visible.
2. Anti-tailgating/ anti-retrogradation function: Flap wing can be set to pause if IR sensor detected obstacle nearby wing area during closing.
Flap will resume closing once the obstacle is removed. This is to make it very difficult for following user to tail gate the first user.
3. Auto close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
4. LED indicator function. LED indicator light is available at both directions to indicate if the lane is available to use (green arrow) or lane is closed for maintenance (red cross).
5. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.
6. Easy integration. Reader holder bracket is available for installing RFID reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket.
