Facial Recognition Access control Anti static Electronic ESD Entrance Drop Arm Turnstile
PRODUCT DESCRIPTION
SINOMATIC Arm Drop Turnstile barriers are designed to control pedestrian entering and exiting, adopts stainless steel #304, double brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.
PRODUCT SPECIFICATION
| Chassis size | 1200 long * 150 wide * 1000 high (MM) |
| | 450mm(standard) |
| Chassis material | SS304 stainless steel |
| Power supply | AC220±10％V, 50Hz |
| Driving electromotor | DC brush electromotor(24V) |
| Input interface | relay switch signal or 12V level signal or pulse width> 100ms 12V pulse signal, drive current> 10mA |
| Normal life | 5 million times |
| Communication interface | RS485 standard |
| Card reader window | 2 |
| LED indicator | 2 |
| Pass speed | 30-40 person/min |
| Gate open, off time | 0.2s |
| The automatic reset time after a fault occurs | 10s |
| Working environment | Indoor, outdoor (with a tent over) |
| Temperature | -20℃ to 60℃ |
| Relative humidity | ≤ 90%, no condensation |

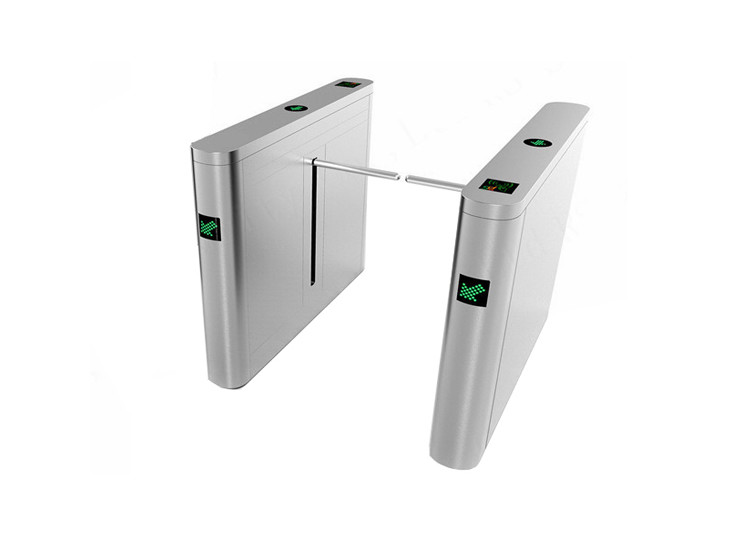

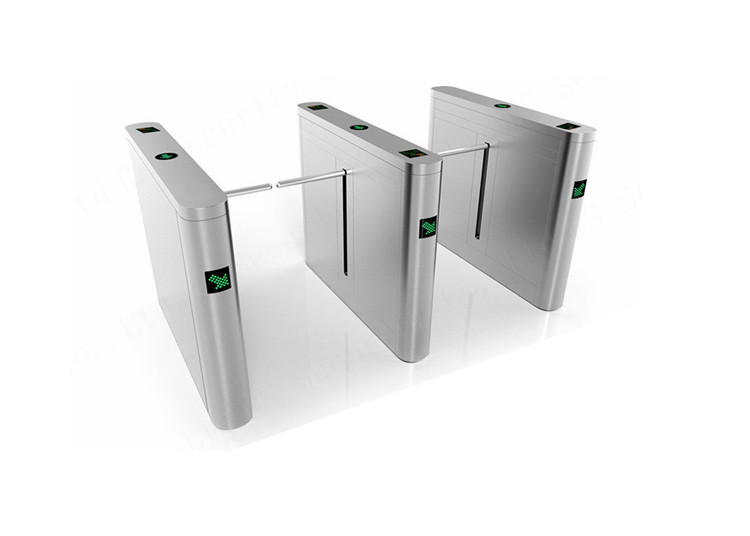

PRODUCT PHOTO
FUNCTION & FEATURES
1.Infrared protection
2.Excellent housing design, save space
3.Several working mode, normal open or normal close
4.LED light, optional color
5.Self-examine and alarm, it is convenient for maintenance and use.
6.Being able to program operation status by the small keyboard in the main board
7.Protect pedestrian from hurt
8.Light and sound alarm function
9.Arms are automatically locked until opening signal is received.
10.Arms synchronization (adjustable)
11.Automatically open the gate when power off and automatically close when power on
12.Optional reader: rfid card, fingerprint, face amchine, button, intercom system and so on
13.Single direction or bi-direction are optional
14.It can be directly control by remote control (optional)
15.Can be linked with a variety of control equipments, receiving the signal of relay switch .
16.Diversify passageway modes, can be one-way or two-way passing or one-way controlled, reverse free passage.
